PTP
To use gPTP (Generalized Precision Time Protocol), you need to configure PTP first. In Linux, a commonly used tool is ptp4l.
Install the ptpd package:
apt install ptpd
To check the PTP status, install the linuxptp package:
apt install linuxptp
This package includes ptp4l.
Check if your hardware supports hardware timestamps:
sudo ethtool -T enp3s0
If it only supports software timestamps, the output will look like this:
Capabilities:
software-transmit
software-receive
software-system-clock
PTP Hardware Clock: none
Hardware Transmit Timestamp Modes: none
Hardware Receive Filter Modes: none
For hardware support, you need the following capabilities:
SOF_TIMESTAMPING_RAW_HARDWARE
SOF_TIMESTAMPING_TX_HARDWARE
SOF_TIMESTAMPING_RX_HARDWARE
Software stamp
One device operates as the master:
sudo ptp4l -i ens1 -m -S
The other device operates as the slave:
sudo ptp4l -i enp3s0 -m -S -s
PTP statuses are indicated as follows:
s0: Unlocked
s1: Synchronizing
s2: Locked
When the slave successfully synchronizes, you will see a message like this:

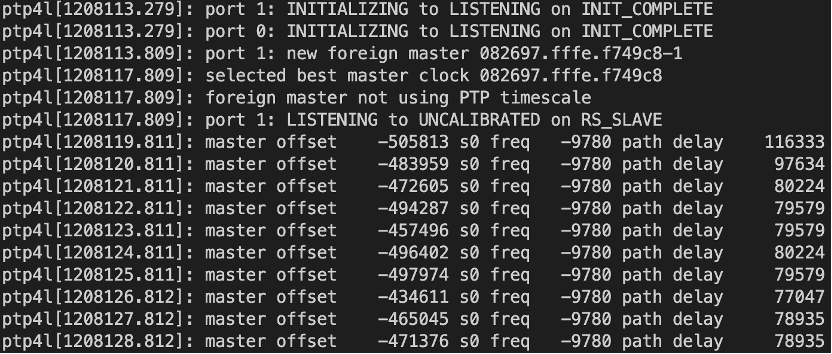

ptp4l[1208136.813]: port 1: UNCALIBRATED to SLAVE on MASTER_CLOCK_SELECTED
Hardware stamp
One device operates as the master:
sudo ptp4l -i ens1 -m -H
The other device operates as the slave:
sudo ptp4l -i enp3s0 -m -H -s
TSN system requires PHC synchronization.
To synchronize the time obtained through the PTP protocol with the system, execute the phc2sys command.
